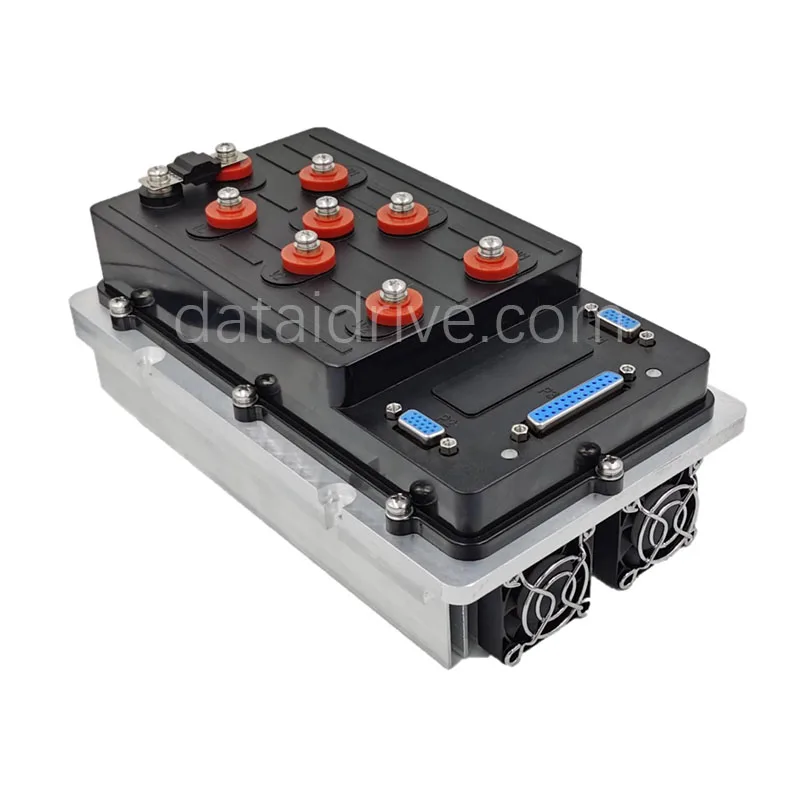

48V 150A INTELLIGENT DUAL-CHANNEL SERVO MOTOR DRIVE
It is a high-power low-voltage intelligent dual-channel servo motor drive. This drive can simultaneously control two servo motors and internally uses a 32-bit high-performance MCU. It employs advanced motion processing algorithms to achieve internal electronic differential function. The driver utilizes the Hall signals from the motors as rotor position feedback and can control motor movement using external incremental encoders (1000-2500 lines) or various rotor position sensor signals. It supports speed open-loop, closed-loop, position, and torque control modes. It has two independent driver chips, two encoder processing chips, and two Hall signal processing chips. Additionally, it has multiple fault alarm functions.
There are two operating modes: independent mode and hybrid mode.
In independent mode, the two motors can be controlled completely independently, with separate input signals for each motor. The speed and direction of each motor can be controlled individually.
In hybrid mode, the two motors can be controlled synchronously (forward, backward, left, right). There are up to 8 control signal options available (wireless remote control, joystick, potentiometer, analog, frequency, pulse width, RS232, CAN bus).
Performance Specifications
1. Power supply voltage: 18-65V.
2. Continuous current at 25℃: 75A, peak current: 150A (5S).
3. Minimum speed: 10RPM in speed mode, 1RPM in position mode.
4. Out+5VDC power supply (for encoder): 5VDC 20MA.
5. Analog input range: 0-5VDC.
6. Pulse input range: 500Hz-5000Hz corresponding to maximum speed.
Note: The minimum pulse frequency will vary depending on the maximum speed setting.
7. Duty cycle input range: 0% – 100% (input frequency range: f ≤ 1KHz, recommended to use 250Hz frequency).
8. Temperature protection status: Output stops at 85℃, resumes when temperature drops to 75℃ and meets system reset conditions.
9. Operating temperature range: -30℃ to +60℃.
10. Ambient humidity: Relative humidity ≤ 80% RH.
11. Dimensions: L*W*H=134mm*228mm*98mm.
12. Weight: 2.6kg.
13. Cooling method: Forced air cooling.
